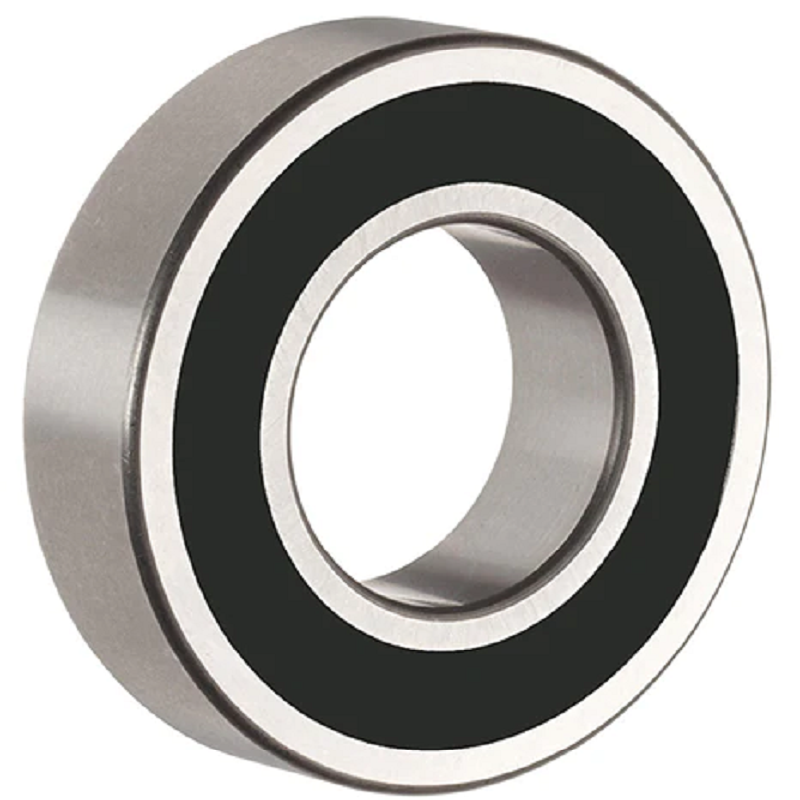

| Name: | 6209 2RS |
| Bore diameter (mm) | 45.00 |
| Out diameter (mm) | 85.00 |
| T Size (mm) | 19.00 |
| Weight (Kg) | 0.41 |
 |
Product Description
| Model Number | Bore diameter | Outside diameter | Width |
| unit: mm | (d) unit: mm | (D) unit: mm | (B) unit: mm |
| 6200 | 10 | 30 | 9 |
| 6201 | 12 | 32 | 10 |
| 6202 | 15 | 35 | 11 |
| 6203 | 17 | 40 | 12 |
| 6204 | 20 | 47 | 14 |
| 6205 | 25 | 52 | 15 |
| 6206 | 30 | 62 | 16 |
| 6207 | 35 | 72 | 17 |
| 6208 | 40 | 80 | 18 |
| 6209 | 15 | 85 | 19 |
| 6210 | 50 | 90 | 20 |
| 6211 | 55 | 100 | 21 |
| 6212 | 60 | 110 | 22 |
| 6213 | 65 | 120 | 23 |
| 6214 | 70 | 125 | 24 |
| 6215 | 75 | 130 | 25 |
| 6216 | 80 | 140 | 26 |
| 6217 | 85 | 150 | 28 |
| 6218 | 90 | 160 | 30 |
| 6219 | 95 | 170 | 32 |
| 6220 | 100 | 180 | 34 |
| 6221 | 105 | 190 | 36 |
| 6222 | 110 | 200 | 38 |
| 6224 | 120 | 215 | 40 |
| 6225 | 130 | 230 | 40 |
| 6226 | 130 | 230 | 40 |
| 6228 | 140 | 250 | 42 |
| 6230 | 150 | 270 | 45 |
| 6232 | 160 | 290 | 68 |
| 6234 | 170 | 310 | 52 |
| 6236 | 180 | 320 | 52 |
| 6238 | 190 | 340 | 55 |
| 6240 | 200 | 360 | 58 |
| 6244 | 220 | 400 | 65 |
| 6248 | 240 | 440 | 72 |
| 6252 | 260 | 480 | 80 |
| 6256 | 280 | 500 | 80 |
| 6260 | 300 | 540 | 85 |
